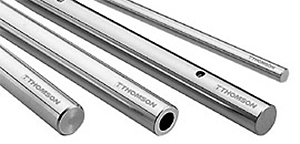

Thomson 60 Case 標準軸系
從非專業的視角來看，所有的軸區別并不大，生產實踐和標準卻顯著影響著圓度、直線度、硬度以及所有其它Thomson客戶所在意的軸系質量。 Thomson 60 Case 軸系具有最高質量標準，性能通過ISO 9000:2000 認證，而且在和Thomson滾珠襯套軸承一起使用時，具有最優的軸承性能和運行壽命。
60 Case標準規格：
| 直徑 范圍 |
等級描述 | 選項 | 材料 | 類型 |
|---|---|---|---|---|
| 英制: 1/8 英寸至 4 英寸 | L:XA, 開, 可調滾珠襯套軸承和軸臺 , Super/Super Smart 軸承 S: 一種類型滾珠襯套 N: 針狀滾珠軸承 D: 成套沖模軸承 XL: XR軟支撐 G: 和Super滾珠襯套一起使用的深溝滾珠軸系 |
標準 預鉆孔的 鉻板 平接 深層 |
碳鋼 440C不銹鋼 52100 管形 316 不銹鋼 |
切到指定長度 隨機長度 隨機長度 長 專門制造 |
| mm: 5至80 | MM: 和公制滾珠襯套一起使用(ISO H6 容差) | 預鉆孔T1 孔型 預鉆孔T2 孔型 |
碳鋼 440C 不銹鋼 |
切到指定長度 隨機長度 隨機長度 專門制造 |
60 Case 標準導向軸優點：
- 多種材料類型選項可選
- 高品質生產工藝，專門開發合金鋼材料
- 專門針對特定要求材料引入洛氏硬度值
- 精確控制Case Depth，保證一致質量
- 無中心研磨，使其具有行業領先的面漆，厚度最大僅8 Ra
- 圓度 L, S, D, M等級為.000080英寸以下，而N等級在.000050英寸以下
- 出廠時每英尺累積直線度為.001英尺以下
- 可以切割到您指定的長度
- 訂購時已帶有徑向鉆孔和內螺紋，可用于連續軸支撐導軌
- 可抵抗腐蝕環境
60 Case® LinearRace® Shafting: Fully Stocked to Keep Your Design Projects on Track
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
Shafting Selector Tool: Special Machining Online Demo
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
