微型公制軸承系列現已停產。

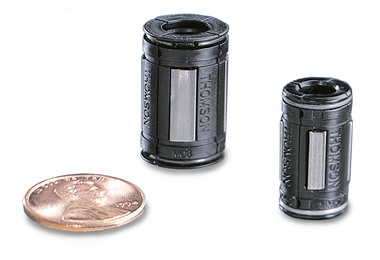

Thomson Miniature Metric Ball BushingTM 軸承?可在輕便、小巧的包裝內?順暢快速?運轉，在使用壽命方面?是傳統型線性軸承的 27 倍之多！輕型設計可實現精確移動和快速加速。雙唇式一體化刷子有助于?安全潤滑和防止灰塵進入，這可延長使用壽命。超精加工軸承板可確保運行順暢和長久的 使用壽命。?提供可用于惡劣環境的耐腐蝕型選件。?
| 規格 | MM03 | MM05 | MM08 | MM12 |
|---|---|---|---|---|
| LinearRace 軸尺寸：mm | 3? | 5 | ?8 | 12 |
| 軸承類型： | 閉式 | 閉式 | 閉式 | 閉式 |
| 軸承滾道數量： | 4? | 4 | 4 | 5 |
| 動態負載額定值：N (lbf)* | 45 (10) | 170 (38) | 310 (70) | 650 (146) |
| 負載限值：N (lbf)** | 50 (11) | 190 (43) | 340 (76) | 715 (161) |
* 用于額定值為 100 km 的行進壽命。
** 負載限值為可向軸承/軸施加的最大負載。
注：務必分析應用，以確保最高或/與沖擊負載不超過負載限值。
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
