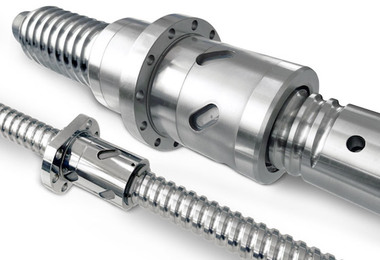

High-load ball screws

高負載滾珠絲杠

Thomson高負載滾珠絲杠是注塑、壓制和金屬加工等領域大型制造機械的理想之選。它們可安全、可靠地水平或垂直移動重型負載，同時具有長使用壽命和可靠性能，并且維護需求很低。我們的標準產品組合包括最大直徑160 mm、最大動態負載1,440 kN的規格。Thomson還可根據用戶的特定應用需求提供定制滾珠絲杠。

產品介紹

高負載滾珠絲杠規格：

直徑 (mm)

(d0)

導程 (mm)

(Ph)

Dw

[mm]

D1

[mm]

i

[each]

L

[mm]

Cam

[kN]

C0am

[kN]

D4

[mm]

D5

[mm]

D6

[mm]

DB

[mm]

L1

[mm]

L3

[mm]

L7

[mm]

L8

[mm]

L10

[mm]
40 12 7.938 75 8 165.0 220 434 93 11 110 M8x1 25 7 16 85 10
50 20 9.525 90 5.8 152.0 259.4 603.4 108 11 125 M8x1 25 7 20 95 10
50 25 9.525 90 5.8 177.5 258 600.9 108 11 125 M8x1 25 7 20 95 10
50 100 9.525 90 2.4 111 100.8 231.8 108 11 125 M8x1 25 7 16 95 10
63 20 12.700 105 8 249.0 478.6 1108.7   125 13.5 145 M8x1 25 9 25 110 10
63 25 12.700 120 5.8 185.5 419.8 1002.2 145 13.5 165 M8x1 30 9 25 130 10
80 20 14.288 135 9 280.5 690.2 1860.8 155 13.5 175 M8x1 30 9 30 140 10
80 25 14.288   135 7 273.0 554.8 1445 155 13.5 175 M8x1 30 9 30 140 10
100 20 14.288 160 8 252.0   709.3 2276.5 186 17.5 212 M8x1 40 10 30 165 10
100 25 19.050 160 8 310.0 968.4 1843.8 189 17.5 212 M8x1 40 10 30 165 10
125 20 14.288 200 11 338.0 1040.1  3997.8 233 22 265 M8x1 40 10 40 205 10
125 25 19.050 200 9 349.0 1238 2753.2 233 22 265 M8x1 40 10 40 205 10
125 30 19.050 200 7 330.5 996.3 2139.6 233 22 265 M8x1 40 10 40 205 10
160 20 14.288 260 12 357.0 1279.9 5870.3 300 22 340 M8x1 40 10 45 265 10
160 25 19.050 260 9 354.0 1440.8 3772.8 300 22 340 M8x1 40 10 45 265 10
160 30 19.050 260 8 370.5 1301.2 3351.9 300 22 340 M8x1 40 10 45 265 10



高負載滾珠絲杠特點：

  • 適用于高負載應用，且速度高、使用壽命長
  • 相對于軋制絲杠更經濟
  • 導程精度達±6 µm/300 mm
  • 結構緊湊簡單，可實現更小更輕的設計
  • 可實現高負載能力的改良滾珠螺母設計
  • 提供采取單螺母或雙螺母的15 m絲杠長度
  • 提供多種預加載選項
  • 運行平滑安靜
