SP24-17A16-04CE

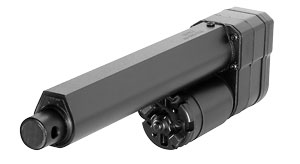

執(zhí)行器, Electrak 1, 電位計, Cable length 2 英寸, Connector (Motor), Flying Leads (Feedback)

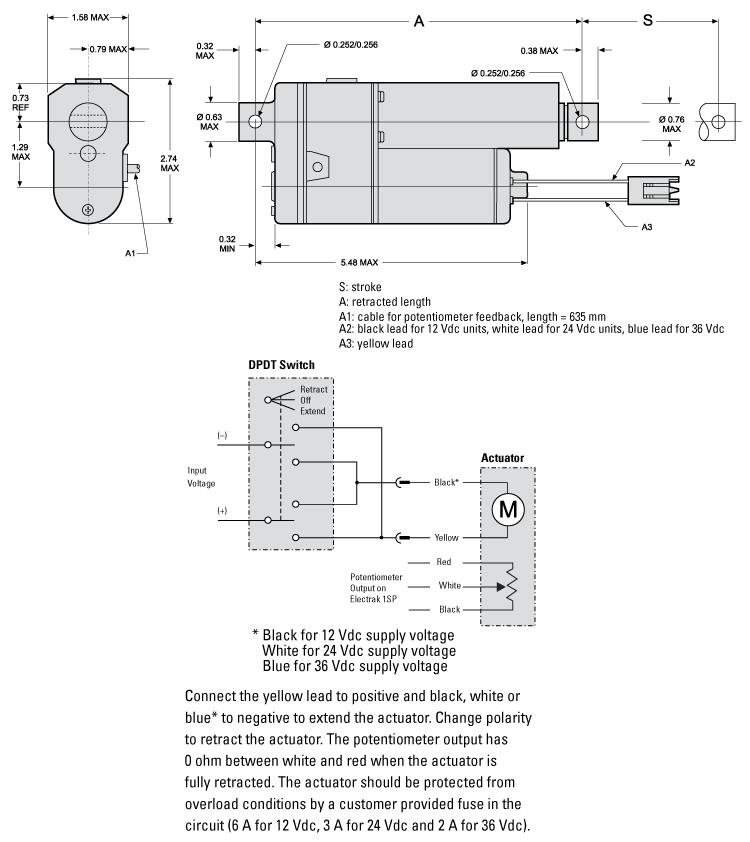

Dimensions

Specifications	價值
Anti-rotation	是
Brake	無（自鎖）
Cable length	2 英寸
Connection	Connector (Motor), Flying Leads (Feedback)
Connector Type	Packard Electric Pack-Con male 8911773 with terminal 6294511
End Play, Max	0.036 英寸
Manual Override	否
Motor Control	None
Protection, End-of-stroke	Electronic
Protection, Overload	None
Temperature Max	150 °F
Temperature Min	-15 °F
Weight	1.3 lb
材質	銅；鋼；鋅；鋁合金；塑料
額定行程	4 英寸
反饋	電位計
防護等級	IP66
絲杠類型	愛克米螺桿

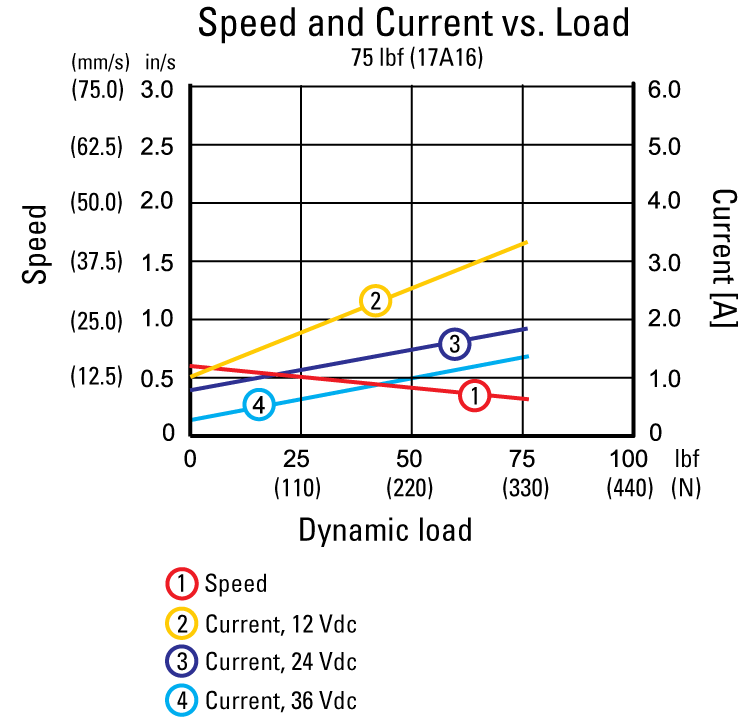

Performance	價值

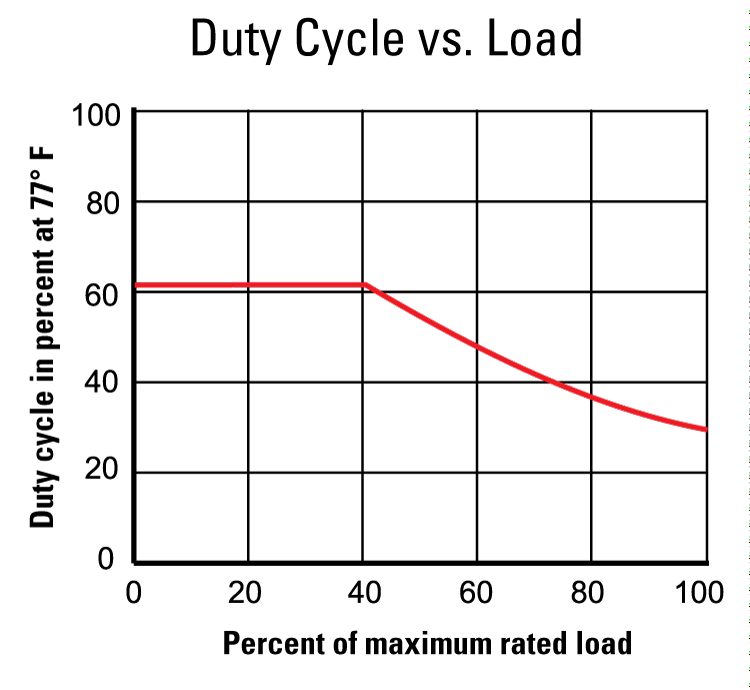

Duty Cyle	25 %
Restraining Torque	0 in-lbs
