MLA17B15-0709S0250-C5-S02

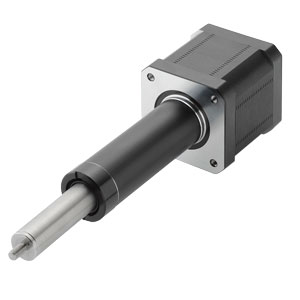

Motorized Lead screw Actuator, NEMA 17, 0.003545 英寸 Travel/Step, 2.5 英寸 Stroke, M4x0.7 x 6.73 mm Male Thread End Mounting, Double Stack, 1.5 A

Motor comes standard with ?ying leads
Cover tube length (L) = stroke (S) + 1.16 in. (29.5 mm).
Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
噪音更低。

Dimensions

Specifications	價值
Current per Phase	1.5 A
Motor, End Play	0.002 in @ 2 lb
Motor, Frame Size	NEMA 17
Motor, Insulation Resistance	100 Mohm @ 500 VDC
Motor, Radial Play, Max	0.001 in @ 1 lb
Self-locking	否
Series	Actuator
Temperature Max	125 °F
Temperature Min	15 °F
Voltage per Phase	1.31 直流電壓伏特
Weight	0.92 lb
磁線絕緣	Class B 266 °F
導(dǎo)桿與軸的安裝同心度（TIR）	0.003 英寸
電感	0.27 mH
電阻	0.87 Ω
堆棧類型	Double Stack
功率損耗	1.96 W
介電強(qiáng)度	500 VAC for 1 minute
濕度，最大值	85 %
溫度，存儲	-4 to 122 ºF
溫度，外殼 - 最大值	176 °F
軸與安裝面的垂直度（TIR）	0.003 英寸
轉(zhuǎn)動慣量	0.47 oz-in²
