MLA11A05-0709S0250-C2-S02

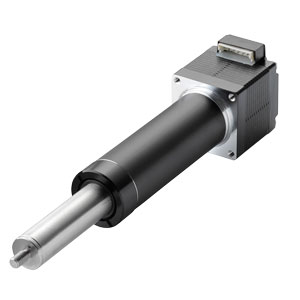

Motorized Lead screw Actuator, NEMA 11, 0.003545 英寸 Travel/Step, 2.5 英寸 Stroke, #8-32 x 0.265 in Male Thread End Mounting, Single Stack, 0.51 A

Molex 53253-0670 connector shown. Wire harness with Molex 51065-06000 mating connector and ?ying leads included with motor.
Cover tube length (L) = stroke (S) + 1.16 in (29.5 mm).
Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
噪音更低。

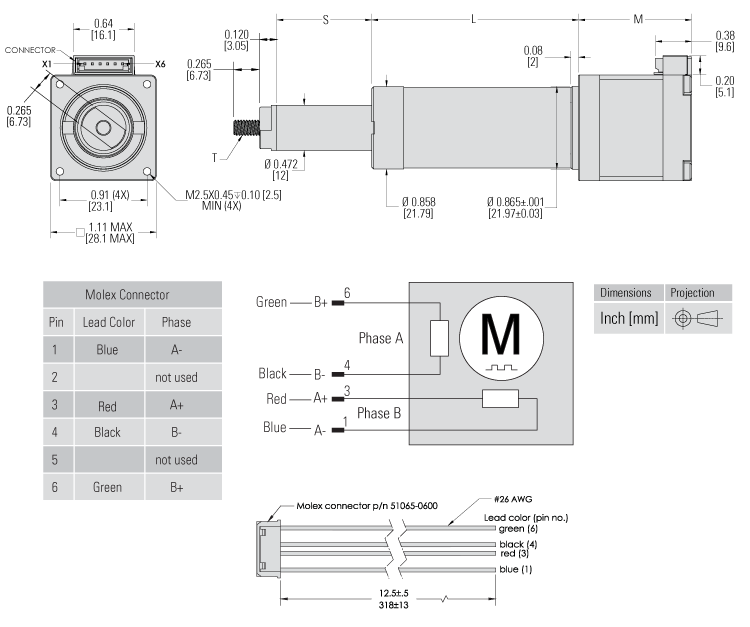

Dimensions

Specifications	價值
Current per Phase	0.51 A
Motor, End Play	0.002 in @ 2 lb
Motor, Frame Size	NEMA 11
Motor, Insulation Resistance	100 Mohm @ 500 VDC
Motor, Radial Play, Max	0.001 in @ 1 lb
Self-locking	否
Series	Actuator
Temperature Max	125 °F
Temperature Min	15 °F
Voltage per Phase	3.85 直流電壓伏特
Weight	0.46 lb
磁線絕緣	Class B 266 °F
導桿與軸的安裝同心度（TIR）	0.003 英寸
電感	5.22 mH
電阻	7.54 Ω
堆棧類型	Single Stack
功率損耗	1.96 W
介電強度	500 VAC for 1 minute
濕度，最大值	85 %
溫度，存儲	-4 to 122 ºF
溫度，外殼 - 最大值	140 °F
軸與安裝面的垂直度（TIR）	0.003 英寸
轉動慣量	0.06 oz-in²
