D313470

D313470
D313470

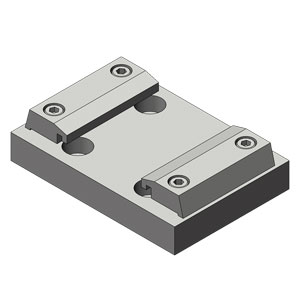

直線運動單元, M55-M75 MONT.PLATTA SMSTN.

  • Two mounting clamps of version M2 and Mounting plate. Screws to connect the clamps to the plate are included.
  • Can be used to mount one unit to another to create a Multi axis assembly

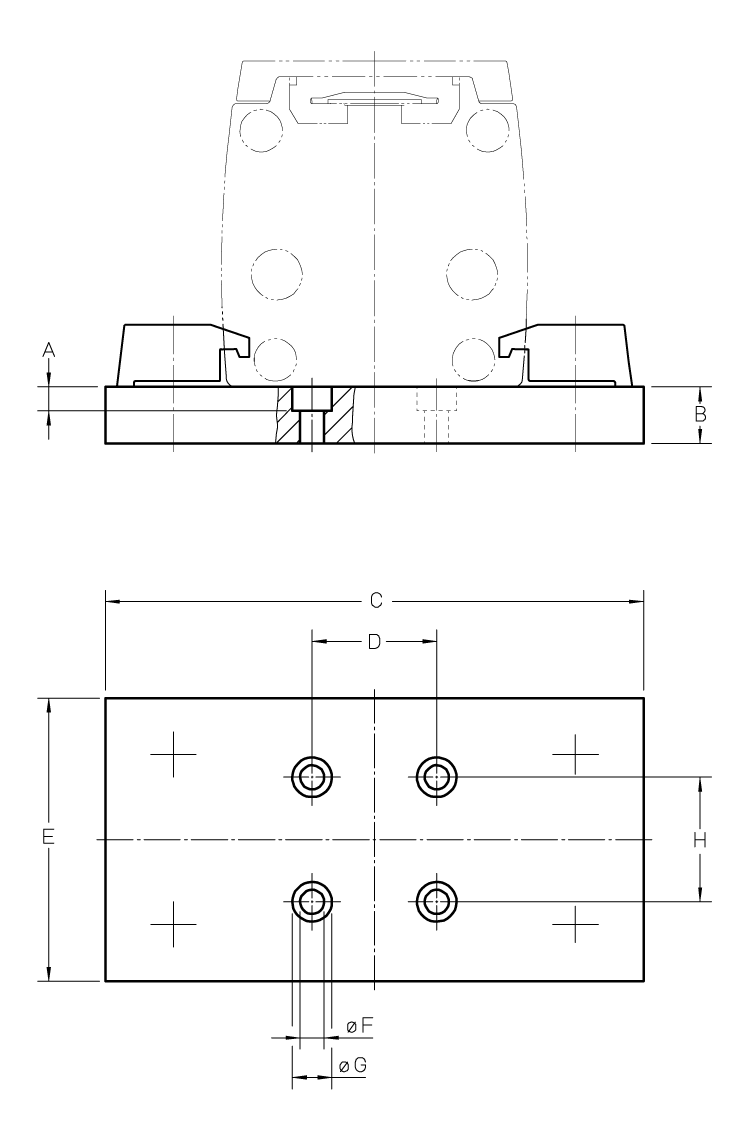

Dimensions

dimensions
尺寸價值
[A]5.5 毫米
[B]15 毫米
[C]134 毫米
[D]76 毫米
[E]80 毫米
[F]5.5 mm
[G]9.5 毫米
[H]41 毫米

Specifications

Specifications價值
Use withM55 to M75
