7833690

MK 20, 支座, 固定, Flange Mount, MK 樣式, 20 毫米 Inside Diameter; 配合使用 1.000 or 1.171 in 滾珠絲杠

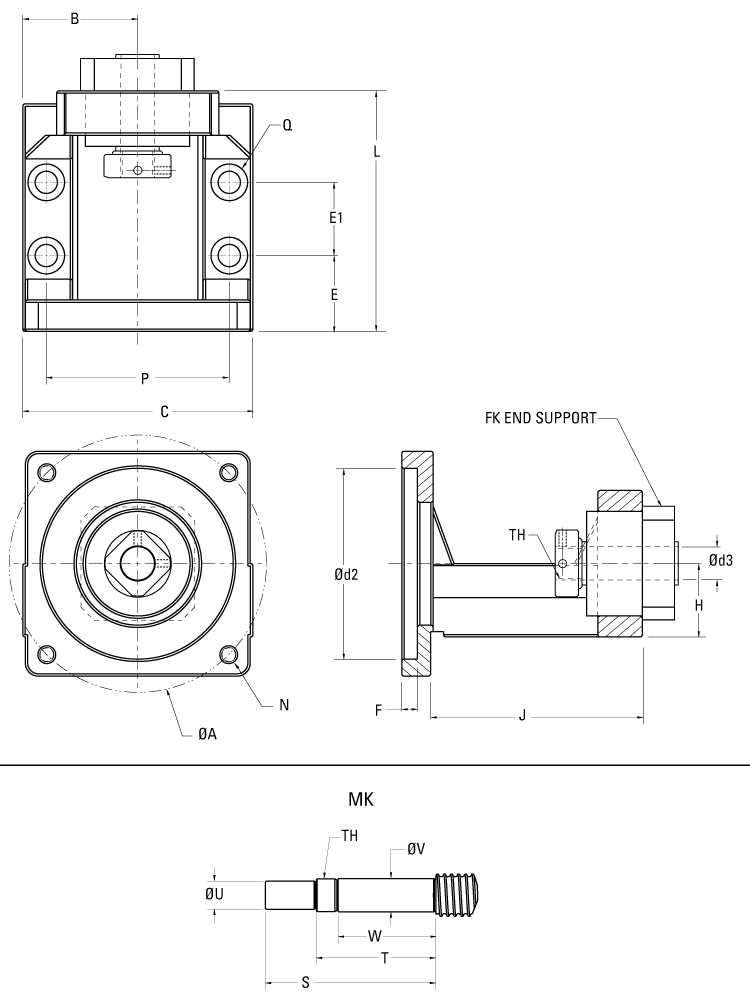

Dimensions

尺寸	價值
[A]	3.874 英寸
[B]	1.732 英寸
[C]	3.465 英寸
[d2]	2.874 英寸
[d3] Bearing Journal Diameter, Recommended	20 毫米
[E]	1.142 英寸
[E1]	1.654 英寸
[F]	0.236 英寸
[H]	1.339 英寸
[J]	4.016 英寸
[L]	4.449 英寸
[N]	M6
[P]	2.756 英寸
[Q]	4x .335 Thru, .571 C-Bore x .315 Dp
[S]	3.425 英寸
[T]	2.441 英寸
[TH]	M20x1
[U]	.6693/.6686 in
[V]	.7872/.7869 in
[W]	1.772 英寸

Specifications	價值
Bearing Trade Number	7204
Retainer	RN20
Temperature Max	300 °F
Use With Screw, Nominal Diameter	1.000 or 1.171 in
預(yù)加載方式	固定

Performance	價值
Load, Dynamic (Bearing Rating)	587 磅力
Load, Static (Bearing Rating)	3726 磅力
