7833361

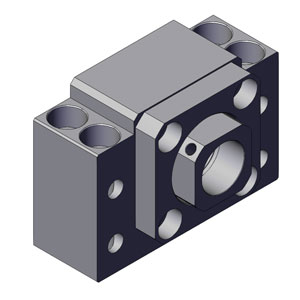

BK 12, 支座, 固定, Base Mount, BK 樣式, 12 毫米 Inside Diameter; 配合使用 0.631 in 滾珠絲杠

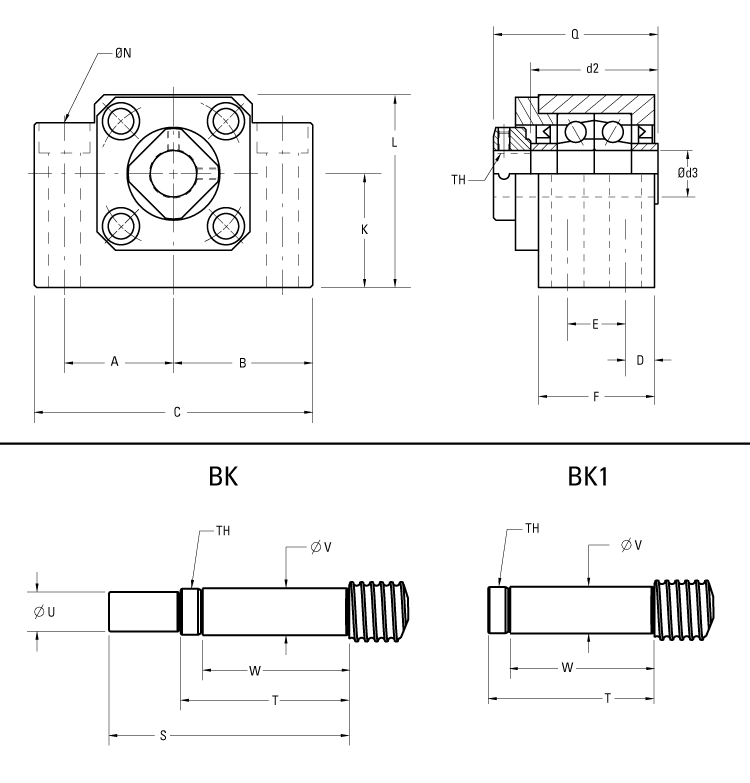

Dimensions

尺寸	價值
[A]	0.906 英寸
[B]	1.181 英寸
[C]	2.362 英寸
[D]	0.236 英寸
[d2]	1.063 英寸
[d3] Bearing Journal Diameter, Recommended	12 毫米
[E]	0.512 英寸
[F]	0.984 英寸
[K]	0.984 英寸
[L]	1.693 英寸
[N]	4x .260 Thru, .425 C-Bore x .059 Dp
[Q]	1.339 英寸
[S]	2.008 英寸
[T]	1.417 英寸
[TH]	M12x1
[U]	.3937/.3931 in
[V]	.4722/.4720 in
[W]	0.866 英寸

Specifications	價值
Bearing Trade Number	7001
Retainer	RN12
Temperature Max	300 °F
Use With Screw, Nominal Diameter	0.631 in
Weight	1 lb
預(yù)加載方式	固定

Performance	價值
Load, Dynamic (Bearing Rating)	478 磅力
Load, Static (Bearing Rating)	1345 磅力
